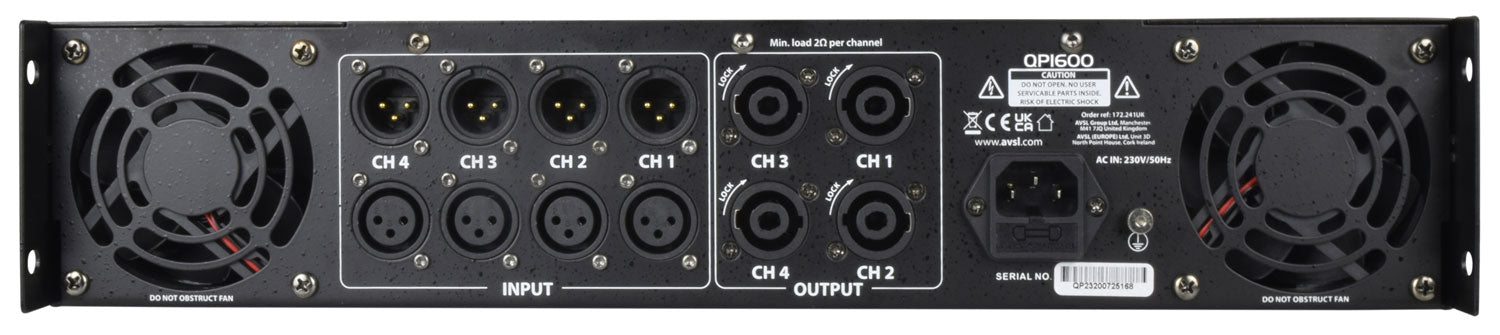

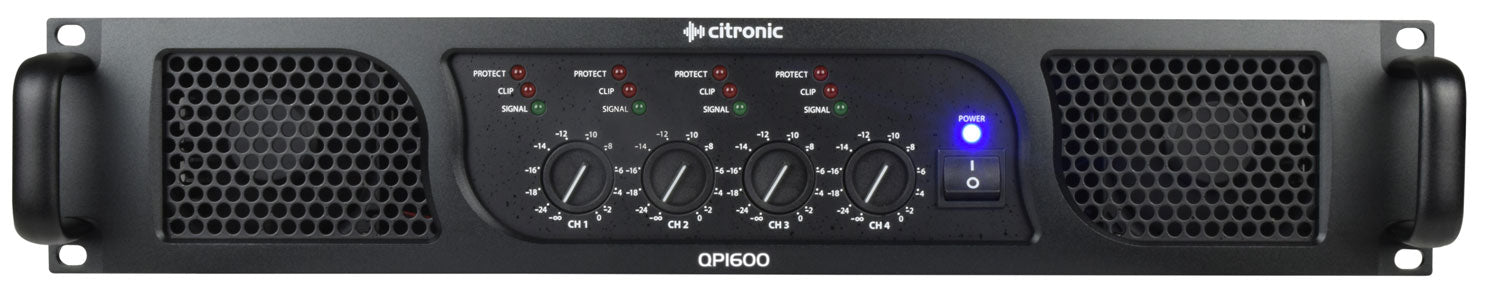

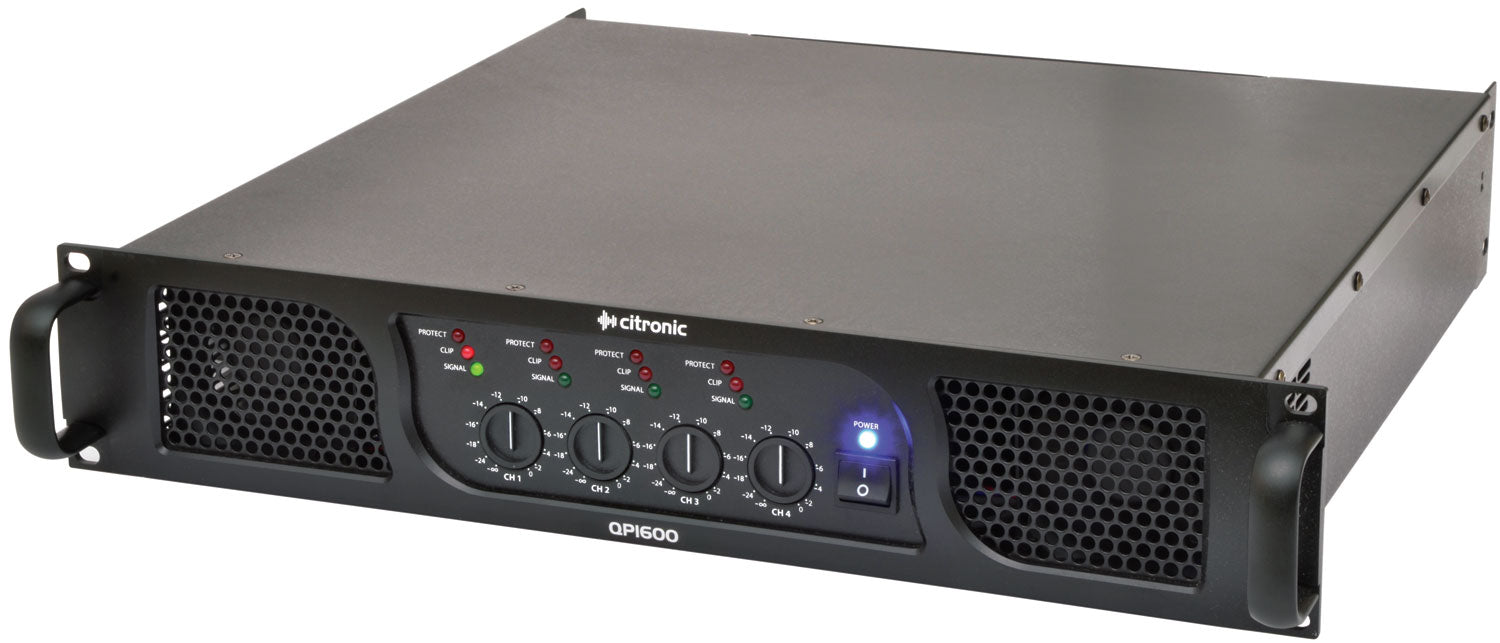

Citronic QP Series Quad Power Amplifiers

A range of quad power amplifiers with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers. Designed as a cost effective and efficient solution for multi speaker installations where sound quality is paramount.

• Fully balanced signal path
• Stable down to 2 Ohms
• 2U rack-mountable

• Weight22kg
• Power rms @ 2 Ohms4 x 400W
• Power rms @ 4 Ohms4 x 300W
• Power rms @ 8 Ohms4 x 200W
• Fuse ratingF8A
• Speaker : outputs4 x SPK connectors
• Power supply230Vac, 50Hz (IEC)
• Input : line4 x XLRF balanced
• Output : line4 x XLRM (parallel from inputs)
• Input impedance20k Ohms
• Frequency response5Hz - 50kHz
• THD0.05%
• Slew rate40V/usec
• S/N ratio103dB
• Controls4 x channel gain
• Circuit protectionShort-circuit, DC, overload, soft-start
• Dimensions483 x 439 x 88mm
• Input sensitivity0dB @ 0.775Vrms
• Amplifier : constructionClass-AB
