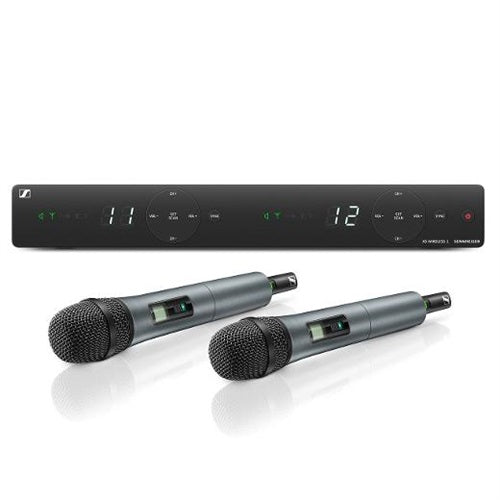

Sennheiser XSW 1-835 DUAL-E
XS Wireless 1 DUAL is a 2-channel wireless system for singers and presenters. Designed with ease of use in mind, these analog UHF systems feature a sleek dual-channel receiver with built-in antennas and the streamlined interface from Sennheiser's popular XS Wireless 1 series.
|Dimensions||Ø 48 x L 180 mm
approx. 320 x 126.5 x 42 mm
Approx. 260 x 50 mm
|Frequency response||55 - 16,000 Hz|
|THD, total harmonic distortion||≤ 0.9%|
|Weight||330 g (0.73 lbs)
approx. 620 g
Approx. 245 g
|Nominal impedance||300 Ω (at 1 kHz)|
|Min. terminating impedance||1 kΩ|
|Storage temperature||–20°C to +70°C|
|Operating temperature||0°C to +40°C|
|Signal-to-noise ratio||≥ 103 dBA|
|RF output power||10 mW|
|Switching bandwidth||Up to 24 MHz|
|Operating time||Approx. 10 hrs|
|Power supply||12 V DC nom. / 300 mA
2 AA size batteries, 1.5 V
|Output voltage||(at peak deviation, 1 kHz AF) 1/4“ (6.3 mm) socket (unbalanced): +6 dBu|
|Housing||Rugged ABS housing|
|Frequency||80 factory presets (8 banks of 10 channels each)|
|Sensitivity||1.8 mV/Pa (free field, no load at 1 kHz)
< 3 μV at 52 dB(A) rms S/N (at peak deviation)
0 to -30 dB, adjustable in 10 dB steps
|Squelch||Adjustable from 3 dBμV to 28 dBμV|
|Synchronization||Transmitter: 2.4 GHz, low power OQPSK (only active during synchronization)|
|Input sensitivity||1.5 mV / Pa|
|AF frequency response||50 to 16,000 Hz (–3 dB)
|Audio adjustment range||45 dB, adjustable in 5 dB steps|
|Line / Mic level||20 dB, switchable|
|Temperature Range||0 °C ... +40 °C (+32 °F ... +104 °F)|
|Receiver Principle||Double superheterodyne|
|Diversity principle||Antenna switching diversity via internal antennas|
